Alians Ulna
Features

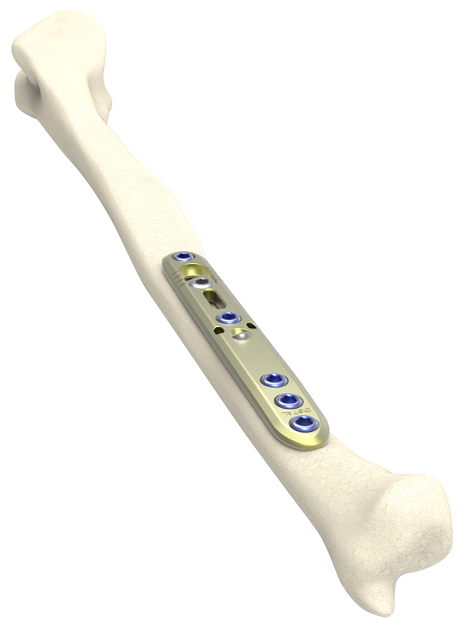

- Low-profile locking plate for Ulna Shortening Osteotomy procedures
- Unique Rack-and-Pinion compression device
- 2.8mm interfragmentary lag screw
- PSI guides available
Alians Ulna
Features
- Low-profile locking plate for Ulna Shortening Osteotomy procedures
- Unique Rack-and-Pinion compression device
- 2.8mm interfragmentary lag screw
- PSI guides available
WANT TO FIND OUT MORE?
Alians Ulna
Technical Features
- Several possible approaches: palmar, lateral or dorsal
- Low-profile plate with rounded edges to prevent soft tissue irritation
- Innovative rack-and-pinion compression system allowing for precise control of compression level
- Precontoured implants for a reliable surgery technique and stable construct: double fixation in the proximal cortical area (sliding effect) allowing for optimal reduction of the 2 bone fragments and efficient stability of the construct thanks to the fixed-angle (50°) interfragmentary screw
Implants
- Symmetrical ulnar shortening plate (77 mm)
- Fixation: Ø3.5 mm locking and non-locking cortical screws, length 10 to 26 mm (2mm increment), Ø2.8 mm interfragmentary non-locking cortical screw, length 16 to 24 mm (2mm increment)
